Imatest测试卡

SFRreg 广角测试图卡

品牌：Imatest/Sine Image
型号：Reg
材料：菲林/高清相纸
类型：透射式/反射式可选

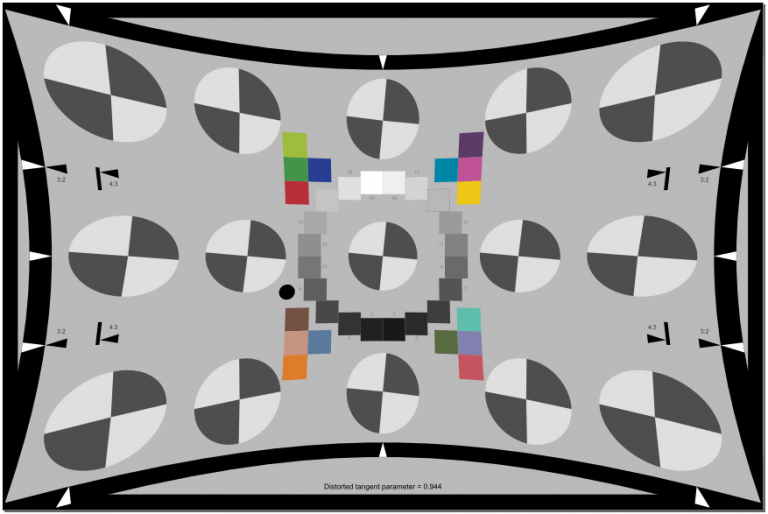

SFRreg 广角测试图卡简介

分辨率测试卡SFRreg 测试图卡可以放置在任意位置和角度，以适应各种各样的测试用例。

1、长距离测试

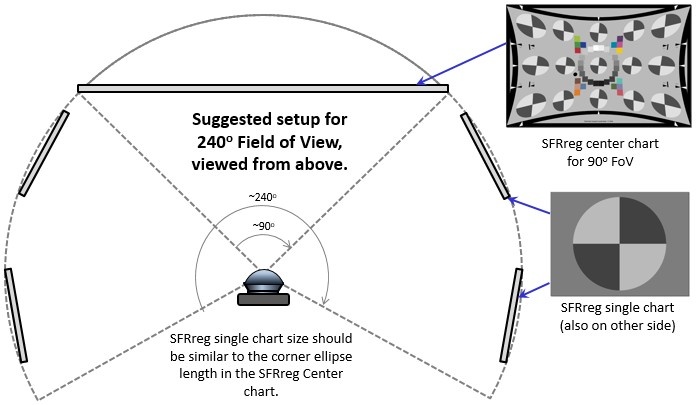

2、超宽视野角度测试

3、自动对焦测试

可用基材：高精度菲林、反射式和透射式喷墨打印

SFRreg 测试图卡提供反射式和透射式两种

反射式&透射式选项

尺寸选项	国际单位制	纸张尺寸
1x	200 mm	7.9"
1.5x	300 mm	11.8"
2x	400 mm	15.7"
3x	600 mm	23.6"
4x	800 mm	31.5"
5x	1000 mm	39.4"

高精度菲林指标

制作尺寸为196.85mmx234.95mm(7.75"x9.25")的图卡在8x10"菲林上

平铺	全指标	国际单位制	纸张尺寸
1x1	1	196 mm	7.7"
1x2	2	117 mm	4.6"
2x2	4	98 mm	3.8"
2x3	6	78 mm	3.0"
3x4	12	58 mm	2.3"

SFRreg模块还支持Optikos Meridian™制造的相机测试系统的测试目标项目，分辨率测试卡允许使用者在无限远处集中紧凑的环境下测试摄像机系统。

Introduction to SFRreg test cards

SFRreg test cards can be placed in any position and angle to suit a wide variety of test cases.

1, long distance test

2, ultra-wide viewing angle test

3, auto focus test

Available substrates: high precision film, reflective and transmissive inkjet printing

The SFRreg test card provides both reflective and transmissive

Reflective & transmissive option

Size Options International Unit Paper Size

1x 200 mm 7.9 "

1.5x 300 mm 11.8 "

2x 400 mm 15.7 "

3x 600 mm 23.6 "

4x 800 mm 31.5 "

5x 1000 mm 39.4 "

High precision film indicators

Production of the size of 196.85mmx234.95mm (7.75 "x9.25") of the card in the 8x10 "film

Tile full index of international unit paper size

1x1 1 196 mm 7.7 "

1x2 2 117 mm 4.6 "

2x2 4 98 mm 3.8 "

2x3 6 78 mm 3.0 "

3x4 12 58 mm 2.3 "

The SFRreg module also supports the test target project of the camera test system manufactured by Optikos Meridian ™, which allows the user to test the camera system in an infinitely limited concentration environment.
