SineImage彩条测试卡简介

SineImage彩条测试卡用来测试色彩还原。

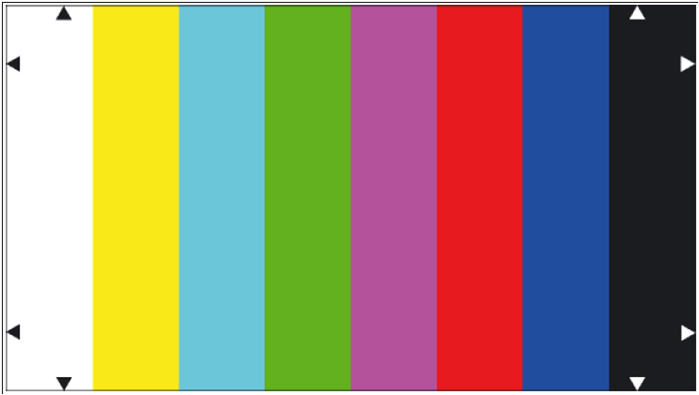

分辨率测试卡画面区域被分为6彩条，展示三基色红绿蓝和二次色青色、黄色和紫色，此外还有白色和黑色模块。

从左到右分别为白色、黄色、青色、绿色、品红色、红色和蓝色。

　　Introduction to SineImage

　　The SineImage color bar test card is used to test color reproduction.

　　The resolution test card screen area is divided into 6 color bars, showing three primary colors red and green blue and secondary color cyan, yellow and purple, in addition to white and black modules.

　　From left to right are white, yellow, cyan, green, magenta, red and blue.

各色彩及其浓度如下

SineImage彩条测试卡尺寸

SineImage彩条测试卡为多种相机分辨率色彩的调整提供一个很好的帮助。我们建议将测试卡与专业的透射式灯箱（推荐使用 标准透射灯箱HC5100/3100）组合使用的。SineImage彩条测试卡提供一定程度的耐光性和耐候性这是传统彩条色卡无法实现的。

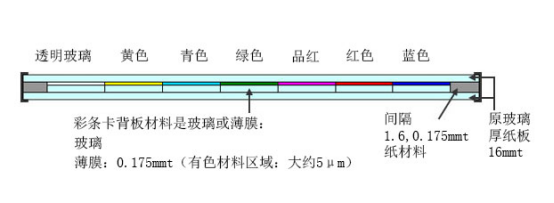

　DNP standard color bar test card construction

　　Each color and its concentration are as follows

　　Color Transparent Yellow Blue Green Green Magenta Red Blue

　　Concentration 0.08 to 1.0 1.4 to 2.0 0.9 to 1.3 1.95 to 2.35 1.1 to 1.5 1.8 to 3.0 0.8 to 1.2

　　SineImage color bar test card size

　　Dimensions Effective dimensions

　　4: 3 320 * 290 245 * 175

　　16: 9 310 * 200 272 * 153

　　SineImage color bar test card for a variety of camera resolution color adjustment to provide a very good help. We recommend using a test card in combination with a professional transmission light box (recommended for standard transmission light boxes HC5100 / 3100). SineImage color bar test card to provide a certain degree of light resistance and weatherability This is the traditional color bar can not be achieved.
